Stainless steel 316L
316L (S31603) is an austenitic stainless steel based on molybdenum. Compared with conventional chromium-nickel austenite such as 304 alloy, it has better resistance to general corrosion, pitting corrosion, and crevice corrosion, and has higher corrosion resistance. Ductility, stress corrosion resistance, compressive strength and high temperature resistance.
Stainless steel 316L (AISI 316L)
Product Description:
316L (S31603) is an austenitic stainless steel based on molybdenum. Compared with conventional chromium-nickel austenite such as 304 alloy, it has better resistance to general corrosion, pitting corrosion, and crevice corrosion, and has higher corrosion resistance. Ductility, stress corrosion resistance, compressive strength and high temperature resistance.
Physical properties:
Density: 7.98g/cm³
Melting point: 1375~1450℃
Extreme chemical composition:
Fe: balance
C: ≤0.030
Si: ≤1.00
Mn: ≤2.00
S: ≤0.030
P: ≤0.045
Cr: 16.00～18.00
Ni: 10.00～14.00
Mo: 2.00～3.00
Cu: ≤0.75
The minimum mechanical properties of the alloy at room temperature:
Tensile strength σb (MPa): ≥480
Conditional yield strength σ0.2 (MPa): ≥177
Elongation δ5 (%): ≥40
characteristic:
Pitting corrosion resistance, high temperature resistance, creep resistance
Application areas:
② Storage and Transportation Tanks
③ Chemical Tubing
④ Food Processing
⑥ Paper Mill Processing
⑦ Pharmaceutical
⑧ Gas Scrubbers
⑨ Photographic Handling
⑩ Textile Industry Parts
⑪ Watch Manufacturing
⑫ Marine Applications

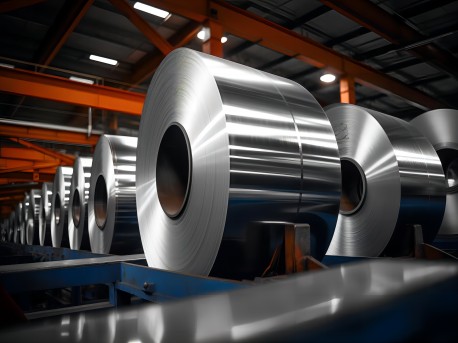

Form: Coil - Strip, Foil, Ribbon Wire
