Monel K-500
Alloy K500, also called Monel K-500, is an age-harden-able nickel-copper alloy that combines the corrosion resistance properties of alloy 400 with high-strength corrosion fatigue and erosion resistance properties. Alloy K500 is precipitation hard-enable through the additions of aluminum and titanium. The chemical composition of alloy K500 retains the excellent corrosion-resistant characteristics of alloy 400. Compared with alloy 400, alloy K500 has enhanced strength and hardness after precipitation hardening. Alloy K500 has approximately three times the yield strength and double the tensile strength of alloy 400. Alloy K500 can be further strengthened by cold working before the precipitation hardening. Alloy K500 should be annealed when welded and the weldment then stress relieved before aging.
Monel K-500（UNS NO5500/ W. Nr. 2.4375 / Nickel Alloy K500 /Aged Nickel/NiCu Alloy）
Product Description
Alloy K500, also called Monel K-500, is an age-harden-able nickel-copper alloy that combines the corrosion resistance properties of alloy 400 with high-strength corrosion fatigue and erosion resistance properties. Alloy K500 is precipitation hard-enable through the additions of aluminum and titanium. The chemical composition of alloy K500 retains the excellent corrosion-resistant characteristics of alloy 400. Compared with alloy 400, alloy K500 has enhanced strength and hardness after precipitation hardening. Alloy K500 has approximately three times the yield strength and double the tensile strength of alloy 400. Alloy K500 can be further strengthened by cold working before the precipitation hardening. Alloy K500 should be annealed when welded and the weldment then stress relieved before aging.
Physical properties:
Density: 8.44g/cm³
Melting point: 1315-1350℃
Extreme chemical composition
Ni(plus Cobalt) 63.0 min
C：0.25 max.
Mn：1.5 max.
Fe： 2.0 max.
S：0.01 max.
Si：0.5 max.
Cu：27.0 - 33.0
Al：2.30 - 3.15
Ti：0.35 - 0.85
The minimum mechanical properties of the alloy at room temperature:
Typical mechanical properties | tensile strength Rm N/m㎡ | Yield Strength RP0.2 N/ m㎡ | Elongation A5% |
Solution treatment | 1100 | 790 | 20 |
characteristic:
Excellent mechanical properties from sub-zero temperatures up to about 480C.
Corrosion resistance in an extensive range of marine and chemical environments. From pure water to non-oxidizing mineral acids, salts and alkalies.
Applications:
Products include chains and cables, fasteners and springs for marine services; pump and valve assemblies for chemical processing; doctor's blades and scrapers, pulp processing in paper-making; oil well drilling rig bushings and instrumentation, pump shafts and impellers; non-magnetic Housings, safety lifts and oil valves, gas outputs; as well as sensors and other electronic equipment components.
Form:

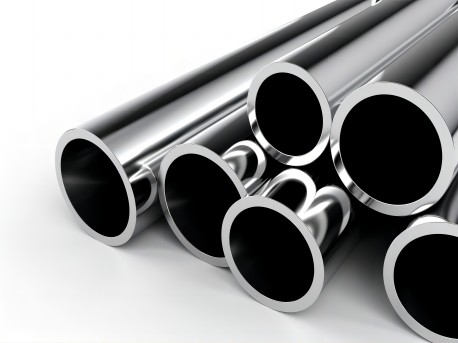

Monel K-500 seamless pipe,

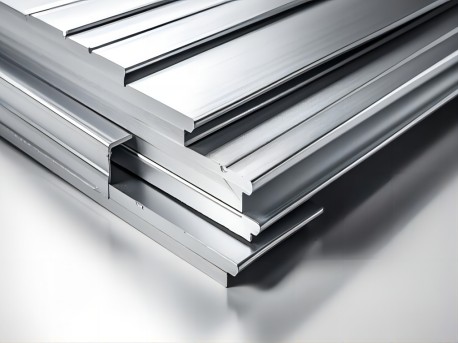

Monel K-500 steel plate,

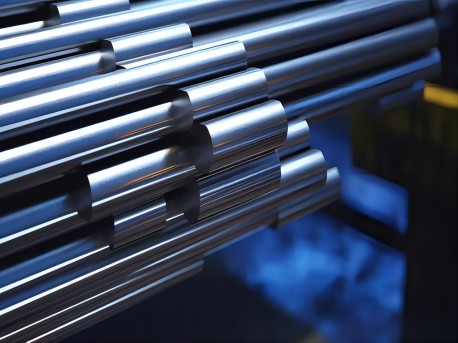

Monel K-500 round steel,
Monelk-500 forgings,

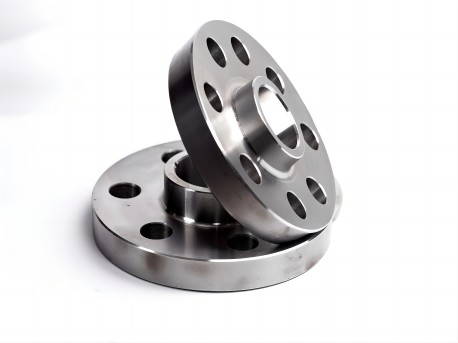

Monel K-500 flange,
Monel K-500 ring,
Monel K-500 welded pipe,

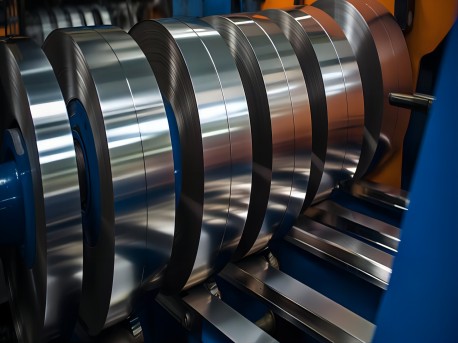

Monel K-500 steel strip,

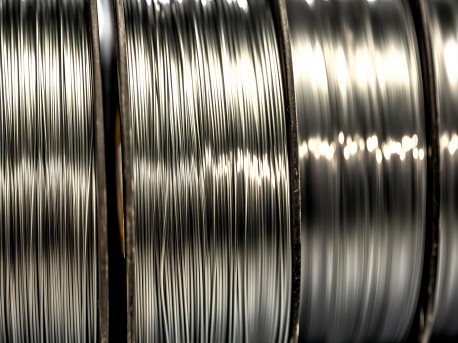

Monel K-500 wire and supporting welding materials
