Inconel 601/UNS NO6601/W.Nr2.4851
Inconel 601 - nickel-chromium-iron based solid solution strengthened alloy has good high temperature corrosion resistance and oxidation resistance, excellent hot and cold processing and welding properties, and has satisfactory thermal strength and high plasticity below 700°C. The alloy can be strengthened by cold working, and can also be connected by resistance welding, solution welding or brazing. It is suitable for making anti-oxidation parts that can withstand low loads below 1100°C. 601 has high creep rupture strength, so Inconel 601 is recommended in areas above 500°C.
Inconel 601/UNS NO6601/W.Nr2.4851
Product Description:
Inconel 601 - nickel-chromium-iron based solid solution strengthened alloy has good high temperature corrosion resistance and oxidation resistance, excellent hot and cold processing and welding properties, and has satisfactory thermal strength and high plasticity below 700°C. The alloy can be strengthened by cold working, and can also be connected by resistance welding, solution welding or brazing. It is suitable for making anti-oxidation parts that can withstand low loads below 1100°C. 601 has high creep rupture strength, so Inconel 601 is recommended in areas above 500°C.
An important property of Inconel 601 alloy is its oxidation resistance at temperatures up to 1180°C. Even under severe conditions, such as heating and cooling cycles, Inconel 601 can form a dense oxide film and achieve high peeling resistance. Inconel 601 has good carbonation resistance. Due to its high chromium and aluminum content, 601 has good oxidation resistance in high-temperature sulfur-containing atmospheres.
Physical properties:
Density: 8.1g/cm³
Melting point: 1320-1370℃
Extreme chemical composition: %
Nickel: 58-63
Chromium: 21-25
Iron: balance
Carbon: 0.1max
Manganese: 1.5 max
Silicon: 0.5max
Sulfur: 0.015max
Phosphorus: 0.02max
Aluminum: 1-1.7
Copper: 1max
Characteristic:
1. Excellent oxidation resistance at high temperatures
2. Excellent carbonation resistance
3. Good resistance to oxidation in sulfur-containing atmospheres
4. It has good mechanical properties at both room temperature and high temperature.
5. Excellent resistance to stress corrosion cracking
Application areas:
1. Trays, baskets and fixtures used in heat treatment factories.
2. Wire strand annealing and radiant tubes, high speed gas burners, and wire mesh belts in industrial furnaces.
3. Isolation tanks in ammonia reforming and catalytic support grids in nitric acid manufacturing.
4. Exhaust system components
5. Combustion chamber of solid waste incinerator
6. Pipe supports and soot disposal components
7. Exhaust gas detoxification system components
8. Oxygen reheater

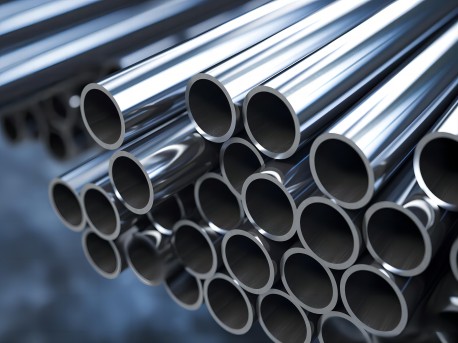

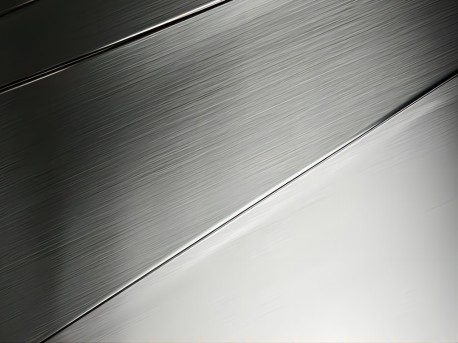

Form: Plate, seamless tubes
