GH90(4090)
GH90 is a NI-CR-CO-based precipitation hardening deformed high-temperature alloy with a service temperature of up to 920°C. Containing a relatively high amount of cobalt and a variety of strengthening elements, the alloy has high tensile strength and creep resistance at 815 to 870°C, good oxidation resistance and corrosion resistance, and has greater resistance to cold and heat under repeated alternating effects. High fatigue strength and good processing and welding properties.
GH90(4090)
Product Description:
GH90 is a NI-CR-CO-based precipitation hardening deformed high-temperature alloy with a service temperature of up to 920°C. Containing a relatively high amount of cobalt and a variety of strengthening elements, the alloy has high tensile strength and creep resistance at 815 to 870°C, good oxidation resistance and corrosion resistance, and has greater resistance to cold and heat under repeated alternating effects. High fatigue strength and good processing and welding properties.
Physical properties:
Density: 8.2g/cm³
Melting point: 1400℃
Extreme chemical composition:
Alloy grade | % | Ni | Cr | Fe | Co | C | Mn | Si | S | Cu | Al | Ti |
GH90 | Min | Balance | 18.0 | 15.0 | 1.0 | 2.0 | ||||||
Max | 21.0 | 1.5 | 21.0 | 0.13 | 0.4 | 0.8 | 0.015 | 0.2 | 2.0 | 3.0 |
The minimum mechanical properties of the alloy at room temperature:
Typical mechanical properties | tensile strength Rm N/m㎡ | Yield Strength RP0.2 N/ m㎡ | Elongation A5% |
Solution treatment | 820 | 590 | 8 |
characteristic:
High temperature stability: GH90 has excellent stability and anti-oxidation properties in high temperature environments and can be used for a long time at temperatures above 1000°C.
Creep resistance: GH90 can maintain good strength and creep resistance under high stress and high temperature, and is suitable for deformation processing at high temperatures.
Corrosion resistance: GH90 has good corrosion resistance and can withstand corrosion in acidic and alkaline environments.
High strength: GH90 has good plasticity and strength and can withstand high stress and high load environments
Application areas:
Aerospace: GH90 is widely used in aerospace engines and aerospace equipment, such as turbine blades, jet combustor components, etc. Aeroengine high-temperature spring components, high-temperature fasteners, combustion chamber clamps, stop pins and other components
Energy field: GH90 is also used in high-temperature equipment and components such as furnaces and gas turbines in the petrochemical, energy mining and power generation industries.
Chemical industry: GH90 can be used in high-temperature components in chemical equipment, such as chemical reactors, catalyst carriers, etc.
Other fields: GH90 can also be used in other fields that require high temperature stability and corrosion resistance.
form:

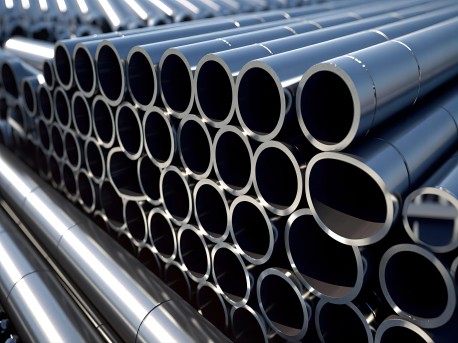

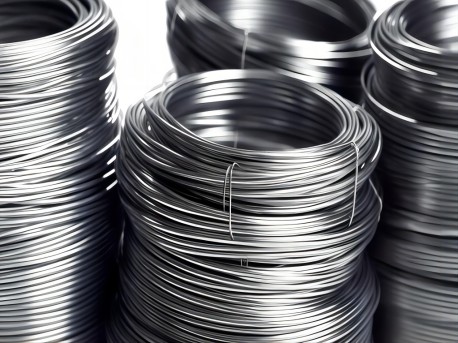

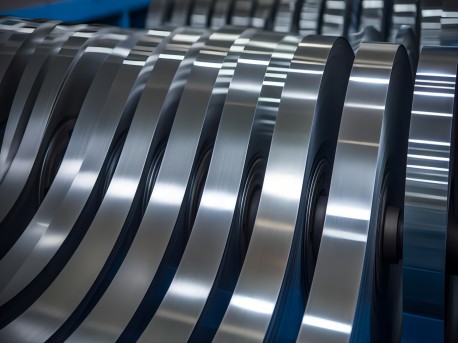

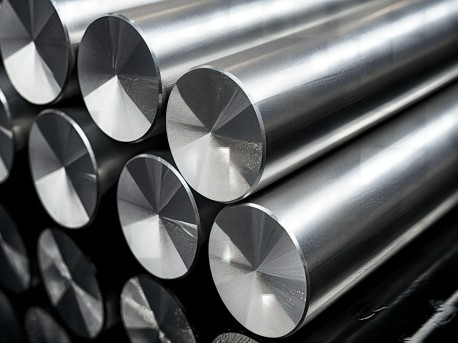

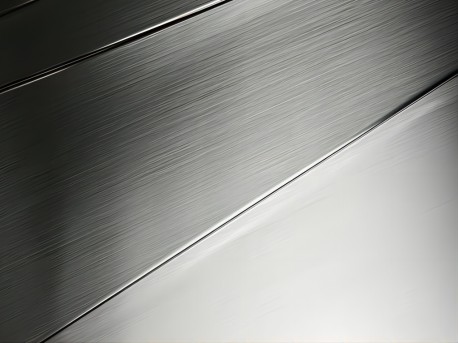

Plate, bar, strip, wire, round cake, ring blank, ring forgings
